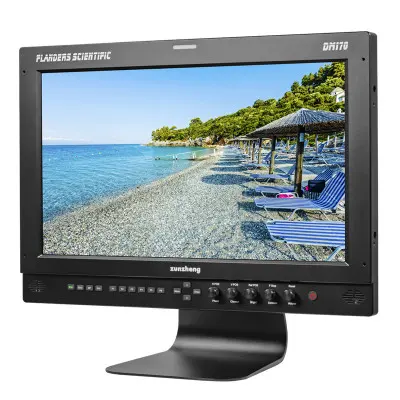

Flanders DM170 17” Monitor

The Flanders DM170 features full 12bit video processing and a 16.5” 10bit LCD panel capable of reproducing over 1.073 billion colors on screen. Its specialized toolset is incredibly well suited for dynamic on set color management applications as well as the most demanding post production environments. This unit is equipped with 3G/Dual-Link/HD/SD-SDI, DVI-D, and Display Port Inputs. Like our CM series monitors the DM170 offers support for virtually any signal format including advanced 12bit, 4:4:4, and XYZ signal formats. What sets the DM170 apart are its 3rd generation Color Fidelity Engine (CFE3), dedicated 2nd screen outputs, Image Flip, Display Port to SDI cross conversion, and zero-delay processing mode

Categories: Flanders, Monitors, Monitors 15"-26"

Request Quote

Description

Display Size: 17 in
Display Size: 1.42 ft
Brightness (Luminance): 450 Nits
Communication Formats: ITU-R BT.656 (PAL) SMPTE-125M SMPTE-274M SMPTE-296M SMPTE-372M SMPTE-425M-AB – Level A & Level B supported – Level B supports 2 x SMPTE 292M image format mapping 372M image format mapping RGB, YCbCr, & XYZ supported 12 & 10bit 4:2:2 1920x1080p (60/59.94/50) 4:4:4 1280x720p (60/59.94/50/30/29.97/25/24/23.98) 12 & 10bit 4:4:4 1920x1080i (60/59.94/50) 12 & 10bit 4:4:4 1920x1080p (30/29.97/25/24/24PsF/23.98/23.98PsF) 12 & 10bit 2k (2048×1080) (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF) *XYZ mapped to Selected Color Gamut on Display Alignment Menu DVI-Analog & DVI-Digital VGA (640×480) NTSC (720×480) SVGA (800×600) XGA (1024×768) SXGA (1280×1024) DVI Digital Only 1280×720, 1440×900, 1920×1080
Communication Ports: LAN, GPI, RS-232. RS-485, 3G/HD/SD-SDI
Contrast Ratio: 1400
Input Cards: 3Gbps/Dual Link/HD/SD-SDI
Lamp Type: Wide Gamut LED
Output Cards: 3Gbps/Dual Link/HD/SD-SDI
Wireless: No
AC Voltage (Maximum): 240 Volts
AC Voltage (Minimum): 100 Volts
Active Power: 23 Watt
DC Voltage: 12 Volts
Product Weight: 8 lbs
